Silicon steel and its coiled version, called silicon coil, go beyond simple terms in metal work. These items form the foundation of effective power setups and exact machines. If you source for transformer cores, electric vehicle (EV) motors, or small home devices, picking the proper silicon steel item can greatly affect power savings, output, and expense.
If you seek a dependable provider to guide you through this tricky area, think about partnering with Qingdao Sunrise New Material Co., Ltd.. As an international and skilled provider of steel and non-ferrous metal raw materials, Sunrise New Material gives custom supply options to more than 100 countries and areas, such as Europe, the Middle East, South America, and Africa. They have modern production lines. Plus, they work with big mills like Baosteel and POSCO. They also hold ISO9001:2015 certification. Their strong point is steady quality and quick shipping. Whether it’s 27Q105 Oriented Silicon Steel CRGO for transformers or special-cut coils for motor cores, their products aim for strong results.
What Is Silicon Steel and How It Differs from Regular Steel?
Not every steel works the same. When you must cut down energy waste in electric gear, usual carbon steel falls short. Silicon steel steps in here.
Core Composition and Magnetic Properties
The main trait of silicon steel is its makeup. It’s basically low-carbon steel boosted with silicon, often from 1.0% to 4.5%. Adding silicon raises the electrical resistance of the steel. This matters a lot for cutting energy waste in electric uses. As a result, it has much lower hysteresis losses. That means it can gain and lose magnetism with little energy waste. It suits transformers and electric motors well.
Common Forms: CRGO vs. CRNGO
There are two main kinds: Cold-Rolled Grain-Oriented (CRGO) and Cold-Rolled Non-Grain-Oriented (CRNGO).
CRGO has lined-up grain patterns that help magnetic flow in one way. It fits power transformers that use one-way magnetic fields. Items like 27Q130 Oriented Silicon Steel CRGO are made just for such efficient transformer cores.
CRNGO has scattered grain setup, though. This works for uses like spinning machines, such as motors and generators. There, the magnetic field turns, and even magnetic traits are needed.
Key Industrial Uses of Silicon Steel
This material plays a key role in fields that need good electric-magnetic output. Its uses vary widely. Each one taps into its special traits.
Power Generation and Distribution Equipment
In power networks, output is not a choice; it’s a must. CRGO silicon steel often goes into big transformers. It cuts core loss during voltage change. Silicon steel shows lower core losses because of its better magnetic traits. This makes it great for electric tasks. Substations, inductors, and reactors also gain from layered cores of silicon steel sheets. They help move energy with little waste.
Automotive Industry Applications
As electric vehicles (EVs) lead news on new ideas, silicon steel powers their growth quietly. EV drive motors often use top CRNGO with slim thicknesses. These cut eddy current loss at fast speeds. Even old car parts like alternators and ignition coils get better output from silicon steel layers.
Home Appliances and Consumer Electronics
From air conditioners to coffee makers, tiny motors are common. Most use CRNGO cores. Output and small size pair well here. Slimmer silicon steel sheets help with that. Small electronics depend on mini transformers from very thin silicon steel too. They handle high-speed switching with low heat.

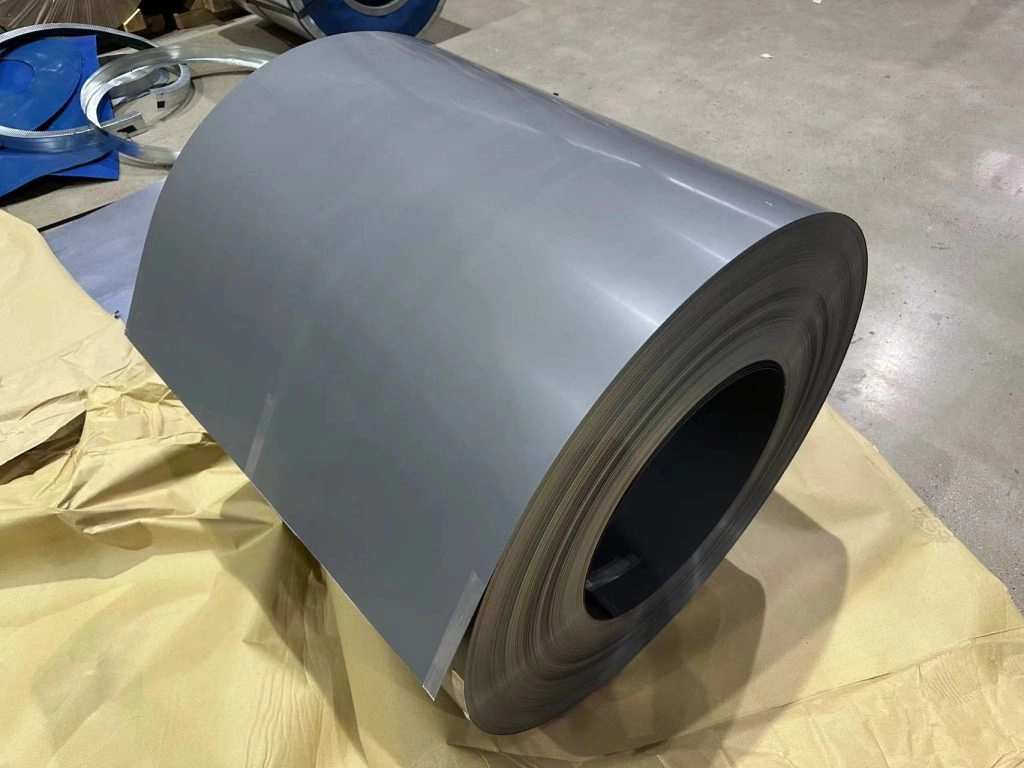

What Is a Silicon Coil?
For makers, raw material in an easy shape boosts work flow. Silicon coils fill that need.
Rolled Form for Efficient Processing
A silicon coil is just a strip of silicon steel that’s cold-rolled and wound into a coil. Coils make storage, moving, and custom cutting easier in making. Makers avoid stiff sheets. Instead, they uncoil only what they need for stamping or layering.
Coil Specifications by Application Needs
Various grades fit different jobs:
- B20R070 (0.20–0.35 mm): Used in high-frequency transformers.
- B35A440 (0.35–0.50 mm): Suited for general-purpose motors.
- H23GK085 (0.23–0.30 mm): Popular in EV traction motors due to reduced core loss.
Choosing the right grade goes beyond just matching. It impacts output and cost savings directly.
Factors That Influence Material Selection
Picking the correct silicon steel means weighing several things: output goals, money limits, and rule following.
Magnetic Performance Requirements
Jobs at higher speeds need materials with less core loss to stop overheating. Grain setup also counts a lot in big transformers or motors that run non-stop under heavy work.
Cost vs Efficiency Trade-offs
Top grades cost more but save money over time by using less energy. For everyday items like home fans or washers, mid-level CRNGO gives a fair mix of price and output.
Environmental Considerations and Regulations
With tougher world rules on energy output, fields move to better electrical steels. Silicon steel’s ability to recycle fits green aims too.
Manufacturing Process Overview
Silicon steel’s output comes as much from its mix as from how it’s handled.
Cold Rolling and Annealing Steps
Making begins with hot rolling of raw slabs. Then comes cold thinning to final sizes. This improves surface look and size accuracy. The big difference is in annealing. CRGO gets a process that lines up grains along the roll direction. This boosts magnetic one-way flow. CRNGO gets treatment for better bend without one-way bias.
Surface Coating for Insulation
To stop short circuits between layers when piled, most coils get a non-organic insulation layer. This cuts eddy current when stacked or layered. It’s key in fast-speed or many-layer designs.
Market Trends Shaping the Industry
The need for silicon coil items grows fast due to wider field changes.
Demand Growth from Renewable Energy Sector
Solar inverters and wind turbine makers rely on strong electrical steels to get the most energy. World grid updates push power companies to swap old transformers for new ones. These use high-output CRGO cores.
China’s Export Capacity Outlook for 2024
China leads as a supplier of electrical steels. Export amounts rise. But world need changes and raw material costs may cause price ups and downs in the year. Buyers should keep an eye on that for stock plans.
Choosing the Right Supplier Matters
Steady quality across lots is vital, not extra. Flaws or differences can cause power waste, noise problems, or even recalls. That’s why getting from solid sources like Sunrise New Material counts. Their cold-rolled silicon coil items meet GB/T2521.2 and IEC 60404-8-7 standards. They back this with pro check systems and fast ship times.
Whether you want standard grades or custom sizes that fit your motor or transformer plans just right, they handle it. Their ship setup also means quick turnarounds through home port stores.
Practical Tips Before Ordering Silicon Coil Products
Before you buy:
- Check your job’s running speed.
- Figure out if CRGO or CRNGO fits your gear.
- Pick insulation layer type based on piling method.
A short talk with your provider can avoid big issues later. Sunrise New Material offers custom slitting too. So you get just what your line needs, without extra waste or waits.
FAQ
Q1: What is the main advantage of using silicon steel over regular carbon steel?
A: Silicon steel offers significantly lower core losses due to its improved magnetic permeability and higher electrical resistivity.
Q2: Are all silicon coils grain-oriented?
A: No. There are both grain-oriented (CRGO) types for directional magnetic flow and non-grain-oriented (CRNGO) types for isotropic magnetic performance.
Q3: Can I use the same grade of silicon coil for both transformers and motors?
A: Typically no—transformers require CRGO for directional performance, while motors benefit more from CRNGO’s consistent behavior in rotating fields.
Q4: Does the thickness of the coil affect performance?
A: Yes. Thinner gauges reduce eddy current losses but are more expensive to produce; selection depends on your specific efficiency goals.
Q5: Where can I buy high-quality silicon coil material?
A: You can source reliable CRGO and CRNGO products—including custom-cut options—from Qingdao Sunrise New Material Co., Ltd., a global leader in advanced metal supply solutions.
