Understanding the Properties of Silicon Steel
What’s Silicon Steel and What’s in It?

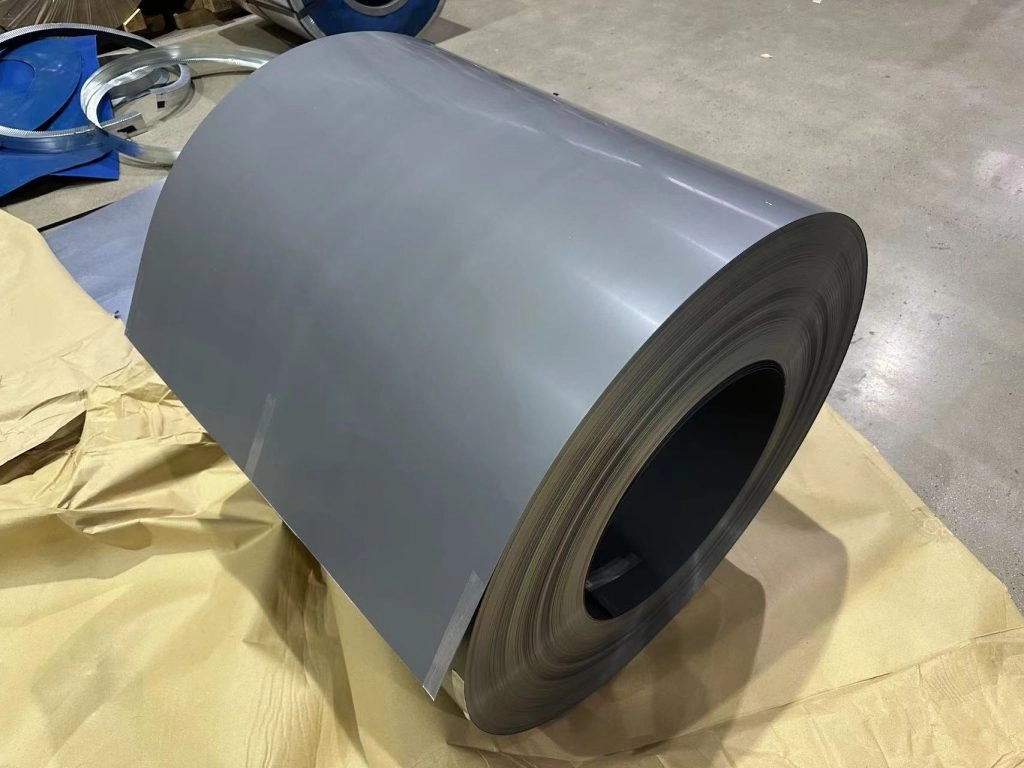

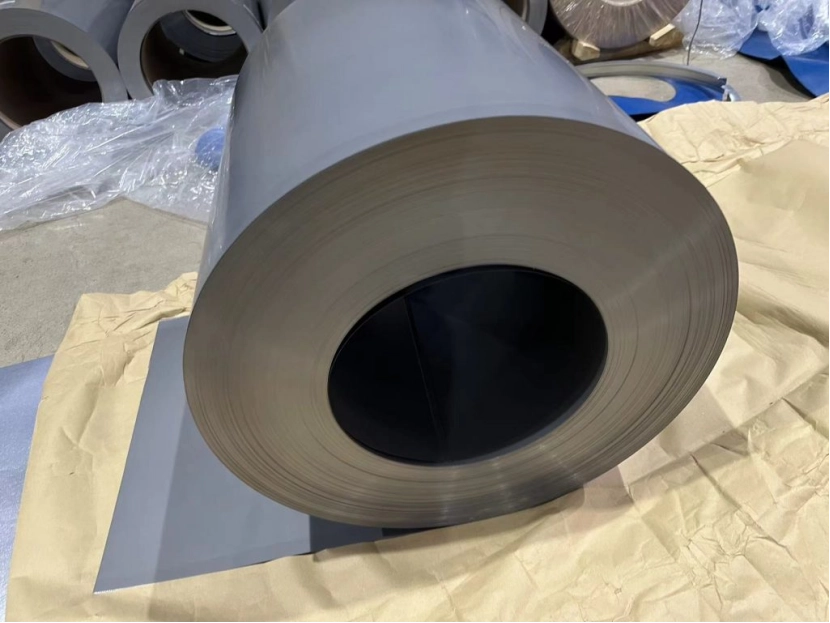

Silicon steel—aka electrical steel—is this awesome metal with some silicon mixed in, like 0.5% to 6.5%. That silicon makes it super great for magnetic stuff, like transformers, motors, and generators. It saves energy when the metal flips between magnetized and not.
It’s mostly iron and silicon, with tiny bits of stuff like carbon or manganese, depending on the kind. They mix it just right to make it work for different electric gigs.
Why Silicon Makes It a Magnetic Superstar
Silicon’s the secret weapon here. It makes the steel resist electricity better, so you don’t lose energy to weird swirly currents. Plus, it tweaks the steel’s tiny bits to cut down on energy waste when magnets switch.
It also makes the steel super easy to magnetize, so your gadgets don’t guzzle power.
Types of Silicon Steel for Electric Gear
There’s two big types for electrical stuff: grain-oriented (GO) and non-grain-oriented (NGO).
- Grain-Oriented Silicon Steel (GO): They make this so its grains line up one way. It’s crazy efficient for magnets going one direction, like in transformers.
- Non-Grain-Oriented Silicon Steel (NGO): The grains are all over the place here. It’s perfect for spinning stuff like motors ‘cause it works the same no matter the direction.
How Silicon Steel Ties to Magnetic Loss
What’s Magnetic Loss Anyway?
Magnetic loss is when energy turns into heat instead of doing cool stuff in machines. It comes from two things: hysteresis loss and eddy current loss. You wanna keep these low to make your gear run smooth and save power.
How Silicon Saves Energy
More silicon means less wasted energy. It boosts resistivity, so those annoying eddy currents don’t mess things up. It also shrinks the magnetic “loop,” so you lose less energy flipping magnets.
But too much silicon makes the steel brittle and tricky to shape. They gotta find the sweet spot for each job.
Grain-Oriented vs. Non-Grain-Oriented Vibes
Grain-oriented silicon steel rocks when magnets flow one way, like in transformers. Its lined-up grains slash energy losses. Non-grain-oriented is chill in all directions but loses a bit more power than GO in the same setup. It’s still the best pick for spinning machines like motors.
Stuff That Messes with Energy Savings
How Hysteresis and Eddy Current Losses Work
Hysteresis loss happens ‘cause it takes juice to flip magnetic bits every cycle. Eddy current loss comes from little electric swirls that make heat and waste power when magnets change.
Silicon steel fights both. Its high resistivity stops those swirls, and its fine-tuned insides make flipping magnets way easier.
How Heat Screws with Magnetic Stuff
Heat’s a big deal. When things get toasty, resistivity goes up a bit, which helps with eddy currents. But too much heat can wreck the insulation between steel layers or mess up the magnetic bits, making stuff less awesome.
So, picking silicon steel that stays chill in hot jobs—like big transformers—is super key.
Why Thickness and Layering Are a Thing
Thinner steel layers keep eddy currents in check ‘cause they trap those swirls in tiny spaces. Stacking thin sheets with insulation between ‘em cuts losses without making the steel weak.
Fancy moves like laser scribing or tweaking the steel’s guts make it even better by helping magnets slide smooth.
How to Keep Magnetic Loss Super Low
Picking the Right Silicon Steel for Cores
- Choosing GO or NGO depends on your gig. Like:
- Transformers dig GO silicon steel ‘cause it’s super efficient at low frequencies.
- Fast motors need NGO for balanced vibes in all directions.
Hooking up with suppliers gets you the perfect fit. Qingdao Sunrise New Material Co., Ltd. Customization Service can pick the exact grade for your project.
Heat Tricks to Make It Awesome
Heating the steel just right—called annealing—zaps stress from rolling or cutting. It keeps GO steel’s grains lined up or makes NGO steel more even, boosting efficiency and slashing losses.
Stress-relief heating also keeps the steel steady in tough spots, like in giant grid transformers or wind turbines.
Smart Transformer Designs for Less Loss
To make transformers crazy efficient:
- Shape the core smart, like round ones or E-I shapes.
- Keep air gaps super tiny.
- Use step-lap joints instead of boring ones.
- Stack layers tight with insulation.
These tricks, mixed with top-notch silicon steel, keep losses low even when power goes wild.
Where Silicon Steel Makes Things Energy-Saving
Transformers and Motors Love It
Transformers use grain-oriented silicon steel ‘cause it’s a beast for one-way magnetic flow. Motors—like fans or pumps in HVAC—go for non-grain-oriented steel for solid performance in spinning parts.
By cutting hysteresis and eddy current losses, these machines do more with less juice, saving money and helping the planet.
Why It’s a Hero for Green Energy and Smart Grids
Green gear like wind turbines or solar converters needs cores that handle changing loads without getting toasty. Silicon steel’s low-loss powers make it perfect for inductors, chokes, or transformers in smart grids, where every saved watt is a win.
Factory Gear That Needs Low-Loss Cores
Factory stuff—like robot arms or CNC machines—needs magnetic parts that run all day without overheating or needing fixes. High-grade silicon steel keeps power use chill, even with tons of starts, stops, or speed switches.
Frequently Asked Questions About Silicon Steel Magnetic Loss
What causes magnetic loss in silicon steel?
It’s from hysteresis—juice used to flip magnetic bits—and eddy currents, those pesky swirls that make heat. Both depend on how the steel’s built.
Why does silicon cut down energy waste?
Silicon boosts resistivity to stop eddy currents and tweaks the steel’s guts to make magnet flips easier, cutting total losses big time.
Which is better: grain-oriented or non-grain-oriented silicon steel?
Grain-oriented is dope for one-way magnet flow, like transformers. Non-grain-oriented is better for spinning stuff like motors ‘cause it’s good all around.
Can transformer design change magnetic loss?
Totally! Smart designs with tight joints, thin layers, and good annealing slash losses when you use awesome silicon steel.
Is silicon steel great for green energy?
Yup! Its low-loss vibe makes it perfect for wind turbines, solar converters, and smart grid gear, saving power like a champ.
Wanna dig into picking the best silicon steel for your project? Hit up Qingdao Sunrise New Material Co., Ltd. for wicked, customized solutions that fit just right!
